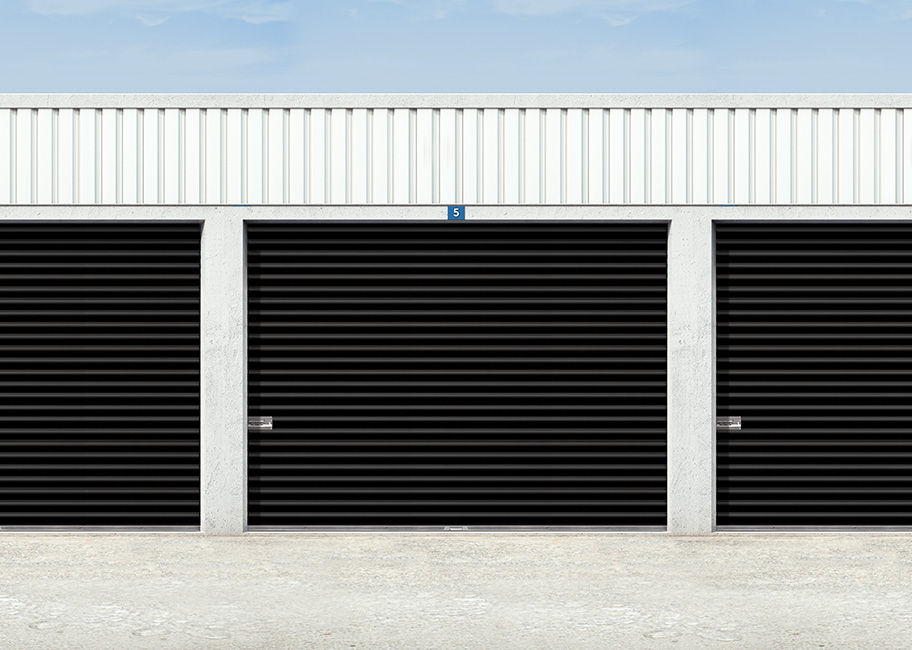

Wayne Dalton Roll Up Sheet Door Model 700
Roll-up Sheet Doors offer an ideal solution when your project requires an attractive and solidly constructed sheet door that is also easy on your budget. Designed to fit most building structures, we offer several types, including mini-doors, low-profile, commercial or heavy commercial roll-up doors. Select from a wide range of designer colors so your building can maintain a uniform look while still providing accessibility to meet your needs. These doors incorporate innovative design elements that enable fast installation and ensure smooth operation for long-lasting performance.
Ideal Applications Include:
Commercial Buildings | Self Storage | Loading Docks | Freight Terminals | Warehouse | Office Buildings
Quantity
Features
| Standard Construction | Model 790-CW | Model 780-CD | Model 770-SS |
| Max. Width | 20' | 16' | 10' |
| Max. Height | 16' | 16' | 10' |
| Max. Steel Gauge | 26 | 26 | 26 |
| Material | Galvanized Steel | Galvanized Steel | Galvanized Steel |
| Operation | Manual | Manual | Manual |
| Counterbalance Assembly | 12" | 12" | 9" |
| Locking | Dual slide bolt | Dual slide bolt | Exterior curtain slide lock |
| Guides | 14-gauge | 18-gauge | 18-gauge |
| Headplate | 14-gauge | 18-gauge | 18-gauge |
| Bottom Bar | Extruded aluminum reinforced with steel, roll-formed angles |
Extruded aluminum reinforced with steel, roll-formed angles |
Quick-connect bottom bar stops – 14-gauge galvanized steel, with roller bearings |
| Wind Load (optional) | Yes** | Yes*** | Yes** |
*Cylinder locks and padlocks not provided
**FBC, TDI, Miami Dade approved wind load reinforcement is available for hurricane-prone areas
***Only internally approved wind load reinforcement is available to withstand conditions in wind prone areas
Benefits
High-Quality Design
- Unique curtain profile facilitates smooth operation and minimizes curtain damage
- Stepped rings allow tight, uniform curtain wrap and minimize headroom requirements
- Bearings prevent steel-to-steel contact, improve door operation and increase door shaft life
Installer Friendly
- Quick-connect headplate eliminates the need for multiple fasteners
- Quick-connect bottom bar stops minimize fasteners and allow easy insertion of curtain into the guides
- Universal guide allows fastening in concrete, masonry, or wood jambs and fastening or welding to steel jambs
- Through-hole design reduces sideroom requirements
Warranty
- 12-Months Limited Warranty on all product parts and components
Enhancements
Operation
- Chain hoist with reduced drive
- Motor
Safety Focused
Locking Options
- Double shackle
- Cylinder
- Left side lock and step plate
Available with WindSafe® wind load reinforcement built to withstand specific high-wind pressures to meet local building codes.
*Proper door selection is the responsibility of the homeowner. Please consult your local building code official, certified engineer or architect for wind load requirements in your specific location.
**Model 780CD is available with internally approved wind load options only.
Design Options
Header draft seal
Jamb extension brackets
- Steel/wood jambs
