Wayne Dalton Security Shutter Model 523

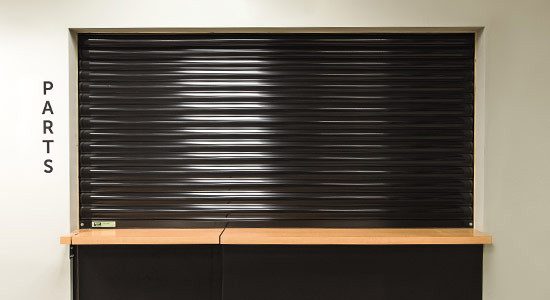

Model 523 is an attractive security shutter for areas where aesthetics is a valued premium along with visibility and airflow. This shutter has a compact design and comes pre-assembled for easy installation in areas with low headroom and side room requirements. Model 523 provides security against forced entry or theft with slide bolts or cylinder locks available on manual or crank operation while fitting in with the aesthetics of the facility.
Ideal Applications Include:
Pharmacies | Hospitals | Airports | Counters | Offices | Schools | Concessions | Sports Facilities | Retail Facilities
Quantity
Features
| Standard Construction | Model 523 |
| Max. Width* | 20' |
| Max. Height* | 14' |
| Slat Style | Solid |
| Mounting | Face-of-wall or between jambs |
| Operation | Manual Push-up |
| Material | Aluminum |
| Curtain | Interlocking extruded aluminum slats constructed of .05" aluminum |
| Counterbalance | Steel barrel; housing spring assembly |
| Guides | Extruded aluminum channels with continuous wear strips |
| Hood | Aluminum square hood |
| Brackets | Steel plates |
| Bottom Bar | Compact aluminum with vinyl bulb seal |
*Maximum height and width are independent of each other and may vary based on slat profile, material and gauge
Benefits
Installer Friendly
- Designed to be compact, the headroom and sideroom requirements are minimal and the pre-assembled door allows for easy installation
- Made with extruded aluminum, the curtain has interlocking slats constructed of .05” aluminum and comes pre-assembled for easy installation
Attractive Design
- Its compact design allows for a 14’ high door to wrap into a 10” square hood
- Stylish design by powder coating over anodizing includes more consistent coloring, easily matched replacement parts, and shorter lead times
Warranty
- 24-Months Limited Warranty on all product parts and components
Enhancements
Operation
- Interior crank
- Tube motor with crank for emergency egress manual override
Safety Focused
- Cylinder lock (if motor operated requires interlock microswitches)
- Pad-lockable slide bolts (padlock not included)
- Interlock microswitch
Design Solutions
- Bottom bar step angle attachment
Design Options
- Slat Styles
- Standard Slat
- Perforated - Perforation pattern - Offers 22% open area
- Fenestrated - 1" x 1" fenestrations with uniform spacing - Offers 24% open area
Colors
Standard Powder Coat
-
White
-
Almond
-
Silver*
-
Bronze*
Guides/Brackets/Hood/Bottom Bar
- Custom Color
*Silver and bronze powder coat made to match the anodized aluminum style
RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.
